P4.81 L Shape 90 Degree Corner Seamless Indoor Full Color Led Video
Wall Led Sign Display Screen
Attracting more prople with full angle.
Saving energy
Reducing costs up to 95%(compared to incandescent systems)
Efficiency
Long life span-over 100,000hrs(approx.10 years)
Weather resistant
Low maintenance
High resolution and clarity
Advantages:
Boost marketing sale
Increase impulse purchasing,
Promote higher margin items,
Increase and maximize profits.
Easy to change and update program:
Support Asynchronous 3G/4G,wifi, LAN,USB & Asynchronous control
1. High Stability: Use high quality components and parts and
sophisticated processing technique. Products with stable quality ,
high reliability and long life span.
2. Rich Content: It can show text, chart, graphic, cartoon ,video
and so on.
3. High Refresh Rate: Adopt MBI5124 drive IC (Standard
Configuration). The refresh rate can be as high as 1920Hz, which
can eliminate ghost effect effectively. For rental led display, we
prefer to adopt the MBI5252/ MBI5153 driver IC, the refresh rate
can achieve 3840Hz. The graphics are stable with no wave or black
screen. Video pictures are fine and smooth with clear edges. It has
good dynamic expressiveness which can show the graphic information
exactly/vividly and brings you perfect visual enjoyment.
4. High Resolution: Adopt high pixel density display unit with
micro pitch, which can joint the boards together in any direction,
any size and any shape to easily produce FHD, 4k big screen.
5. Superior Consistency Coupled with Low Brightness and High Gray:
Adopt high quality black LED lamp with black cover. The contrast
can be as high as 3000:1. Pictures are fine and clear with vivid
color.
6. Super-wide view angle: 140°view angle and consistent display
effect at multi direction , no mosaic phenomenon
Technical Specification:
| Part Number | Value |
| Pixel Pitch | 4.81mm |
| Physical Density | 43222dots |
| Pixel configuration | One led(1R1G1B) |
| LED lamp | SMD2121 |
| Module Resolution | 52×52pixels |
| Module Dimension | 250×250mm |
| Cabinet Resolution | 468*624 pixel |
| Cabinet Dimension | 2250×1500×130mm(one line) |
| Cabinet Weight | 250KG |
| Brightness Level | 1200nits |
| Max Power Consumption | 720W |
| Ave Power Consumption | 360W |
| Viewing Angle | 120°/60° |
| Operating Power Source | AC90-240V 50-60Hz |
| Operating Temperature | −20℃~+60℃ |
| Drive Mode | 1/13 scanning |
| Communication Mode | Support Asynchronous 3G/4G,wifi, LAN,USB & Asynchronous control |
| Side | One |
| Life Span | 100,000Hours |
| MTBF | 5,000Hours |
| Protecting Rating | IP40 |
| Display Content | animation, graphics, text, date, time, temperature, humidity |
| Languages | English, French, Spanish, Greek, Russian and Italian |
| Operating system | Windows (2000/XP/Vista/Win7) / Android / ios |
| Verification | CE, EMC, LVD, ROHS |
Supply Ability
Supply Ability: 1100+pieces/pcs per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |

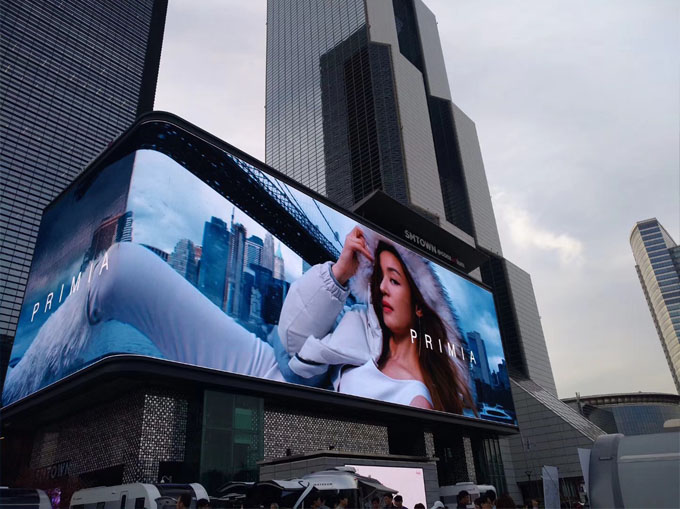

Full HD video wall products and projects overview
OUR SERVICE:
PRE-PRODUCING:
1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
IN PRODUCING:
1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients
AFTER SERVICE:
1. 2 years free maintenance
2. 7 days a week, 24 hours a day for 5 years on-line service for
any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service
