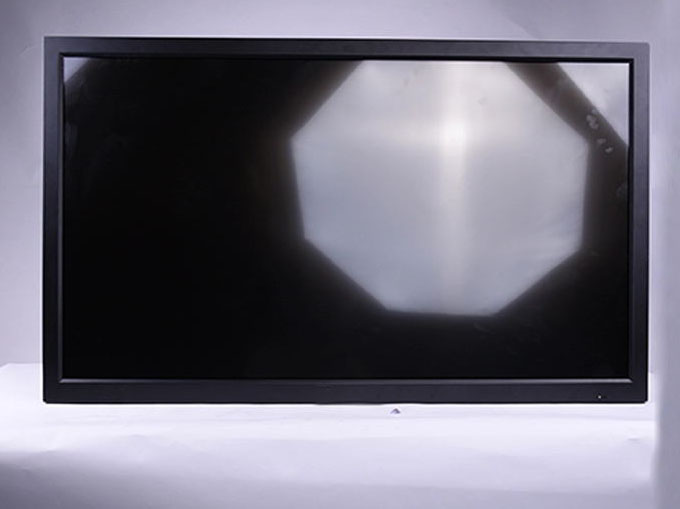

46 49 55 inch LED Ultra Narrow Bezel Seamless Large Display Monitor
for CCTV camera
LCD: 55 Inch TFT SCREEN RATIO: 16:9 Resolution: 1920 * 1080 Display
Area: 1210 * 680 Point Distance: 0.63 * 0.63 contrast: 4000:1
brightness: 450 CDM2 Response Time: 6ms Angle: Horizontal /
Vertical: 178 backlight: LED backlight
Main features:
1. Ultra-narrow border design
2. Full-screen high definition display, up to 1080P3. Unique
cell-based, modular design, Which can splice as a liquid crystal
wall can also be used alone
3. DID using Samsungs proprietary LCD screen is completely
different from the normal LCD screen, display long-life, high
stability, and focus on the special display.
4. Long life, stable operation, no burns, injuries, low maintenance
costs
A wealth of input and output interface, VGA, DVI, YPbPr, Av
interface terminal, can be accessed by computers and a variety of
video equipment.
5.Brand-new ultra-wide viewing angle technology
extended(S-PVAS-IPS), ensure that 178-degree viewing angle both
vertical and horizontally within the image to watch the
non-deformation, color without distortion.
Advantage of Electronics Parts:
A. Good performance with electrical protection: leakage, overload,
overvoltage protection, lightning protection,over temperature
protection, etc.
B. Audio Output: Dual channel, stereo surround amplifier system,
output power 8 ohms 10W and totally waterproof.
C. Working environment temperature design standard -30~ +80°C.
D. Adopt modular design for sustainable and maintainable design.
E. Automatic sensitization: The panel backlight adopts automatic
ambient light sensing, which adjusts the brightness of the panel in
real time to meet the clear image display under strong direct
sunlight, and makes
the panel not glare at night.
Technical Specification:
| Specifications |
| Panel size | OEM (32INCH,42INCH,46INCH,55INCH,70INCH,84INCH,) |
| Display area(mm)/mode | 930(W)×523.0(H) 16:9 |
| Maximum resolution | 1920×1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.4845(H)×0.4845(V) |
| Brightness (nits) | 500cd/m2 |
| Contrast | 1400:01:00 |
| Visual angle | 178°/178° |
| Response time | 8ms |
| Horizontal frequency | 50-70KHZ |
| Backlight mode | LED |
| Vertical frequency | 56-75KHZ |
| Life(hrs) | >60,000(hrs) |
| Specifications for touch screen |
| Panel size | 26"~65" |
| Maximum resolution | 4096*4096 |
| Linearity error | <5MM |
| Scanning speed | 50SCANS/S |
| Durability | stand more than 60000000 times multi-points touch |
| Surface hardness | 7H |
| Transmittance | ≥98% |
| Response time | <16MS |
| System support | Android , WIN7/XP |
| Input and output |
| SD | 1 (support 1080P, up to 32G) |
| SATA hard disk | support |
| Network infterface | RJ45 10/100M Network Adaptive |
| D-15 pin RGB input | 1 |
| USB | Support USB 2.0, support FAT,FAT32,exFAT and NTFS format |
| LVDS interface | can drive lcd screen directly |
| Video and audio |
| Video system | PAL/NTSC/SECAM |
| Play formats | Compatible many play formats |
| Video | H.264,MKV,WMV9,MPEG 1/2/4,HD Divx,Xvid,RM/RMVB |
| Audio | MP3,WMA,WAV,EAAC+, MP2 dec, Vorbis(Ogg), AC3, FLAC, APE, BSAC |
| Picture | BMP/PNG/GIF/JPEG(4088*4088) |
| Word | TXT |
| OSD display( screen menu display) |
| Menu language | Chinese/English |
| Power |
| Power supply | AC100V~240V,50/60Hz |
| Maximum power consumption | <=280W |
| Standby power consumption | <=3W |
| Temperature |
| Working temperature | 0°C~50°C |
| Storage temperature | -10°C~60°C |
| Working humidity | 20%~80% |
| Storage humidity | 5%~95% |
| Appearance |
| Body dimension(Lx W x H)mm | 1249.6×739.2×122.2((for reference only) |
| Panel color/appearance | Ipad design |
| Panel material | SPCC/Aluminum/Customized |
| Installation | wall mount |
| Certificate | CE/FCC/3C/RoHS |
Supply Ability
Supply Ability: 1100+pieces/pcs per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Real products and projects overview
OUR SERVICE:
PRE-PRODUCING:
1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
IN PRODUCING:
1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients
AFTER SERVICE:
1. 2 years free maintenance
2. 7 days a week, 24 hours a day for 5 years on-line service for
any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service
