Factory Supply High Quality Bendable Indoor P2.5 P3 P4 Flexible Led
Video Wall Screen
Flexible Led Display Screen Quick Details:
1, Pixel Pitch:2.5mm SMD LEDs.
2, Full colors: 281trillions.
3, Wide viewing angle: 160°/ 140°.
4, Input Voltage: AC110V/220V, 50/60Hz.
5, Module size: 240x120mm, weight: 8.2kg/Sqm.
6, Recommended minimum viewing distance: 3m.
Flexible Led Display Screen Application:
Bako Vision fixed installation indoor Flexible led screens are
widely used for commercial advertising or media broadcasting in
airport, station, supermarket, pole, square, stadium, public places
and so on.
Flexible Led Display Screen Features:
1, High brightness more than 1,000nits, visible from every
direction indoor.
2, Wide viewing angle for broader reach, up to 160° horizontally
and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3, Super light weight, only 8.2kg per square meter, easy to install
with magnetic module
4, High contrast ratio 4,000:1, beautiful natural picture.
5, You can adjust the resolution by changing modules directly, no
need to do other things, that can save your cost.
Technical Specification:
| Unit Module Specifications |
| Item | P3 | P4 | P5 |
| Pixel Pitch | 3 mm | 4 mm | 5 mm |
| Pixel Configuration | 3in1 (1R1PG1B) |
| Module Size(MM) | 192*192 | 256*128 | 320*160 |
| Module Resolution(Dots) | 64*64 | 64*32 | 64*32 |
| Module Weight(Kg) | 0.3 | 0.2 | 0.37 |
| Package LED Mode | SMD2121 | SMD2121 | SMD3528 |
| Max Power(Watt) | 21 | 11 | 21.5 |
| Pixel Density(Dots/SQM) | 111'111 | 62'500 | 40'000 |
| Driving Method | Constant Current Driving |
| Scan Method(Scan) | 1/32 | 1/16 | 1/16 |
| Interface Way | HUB 75 |
| Brightness(CD/SQM) | ≥ 1000 | ≥ 1200 | ≥ 1200 |
| Unit Cabinet Specifications |
| Cabinet Size(MM) | 576*576 | 512*512 | 640*640 |
| Cabinet Composing(PCS) | 9 | 8 | 8 |
| Power Supply Mode(Per Cabinet) | 5V60A | 5V40A | 5V40A |
| Cabinet Resolution(Dots) | 192*192 | 128*128 | 128*128 |
| Optimal Viewing Distance(M) | 3-300 | 4-400 | 5-500 |
| Optimal Viewing Angle | Horizontal angle: 160 degree; Vertical angle: 120 degree |
| Environment Temperature | Storage: -40 degree ~ +85 degree; Work: -20 degree ~ +60 degree |
| Relative Humidity | 10% ~ 95% |
| Power Supply Specifications |
| Operating Voltage | AC:100V~120V AC:220~240V |
| Average Power(W/SQM) | 150-350 | 150-320 | 150-320 |
| Max Power Consumption(W/SQM) | ≤ 800 | ≤ 750 | ≤ 780 |
| Current | ≤ 20mA (single LED) |
| Control System Specifications |
| Computer | Pentium4 or above P4 or above |
| Operate System | Win7-11/2000/NT/XP |
| Control Mode | Synchronization with PC |
| Main Technical Parameter Specifications |
| Driving Device | Constant Current Driving |
| Refresh Rate | ≥ 1920-3840Hz |
| Gray/Color | RGB each 256 grade, can display 16.7color |
| Lifespan | ≥ 100000hours |
Supply Ability
Supply Ability: 1100+pieces/pcs per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |

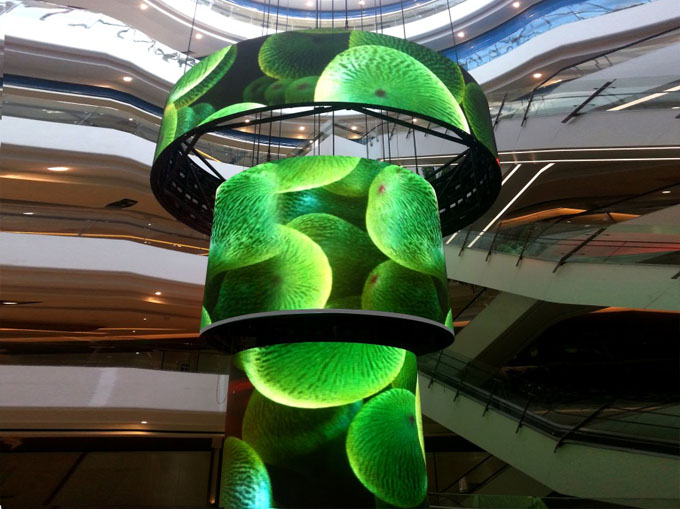

Flexible LED screen display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.
4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
