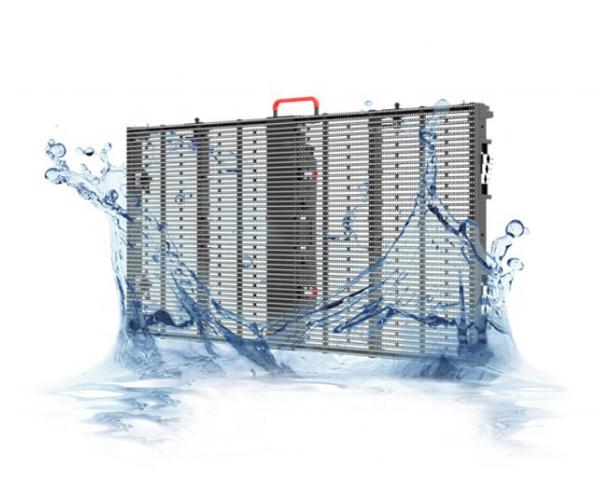

Hd Video Advertising P10.42 Outdoor Waterproof Glass Transparent
Led Screen
1.. Available pixel pitch: Indoor and outdoor 3.9x7.8mm, 7.8x7.8mm,
5.2x10.4mm, 10.4x10.4mm. 3840Hz high refresh rate 55-75%.
Transparency Outdoor True IP65 and Indoor IP31 available
2.Soft mask and protection pillow to protect both players and the
led screen itself.
Ultra-thin& super light-weight.
60mm thickness& 7kg/panel, greatly reduce the load bearing of
support.
Power saving
With power consumption of as low as 1/3 of regular LED display.
Easy to install
It is safe and easy to install, lower the time and labor cost.
Corner cutting design
Different shapes by different cutting degrees.
3, Any building with glass wall. Such as shopping mall, 4S store,
jewelry store, clothing store, watch store, theatres, hotels,
airport, museum, etc
4, The high light transmittance is as high as 70-95%, which ensures
the indoor illumination from the LED display and glass windows.
5, Super small thickness and light weight. The panel thickness is
less than 10 cm, and the weight is less than 15 kg per square
meter, without changing the building structure. Can be fixed to
glass windows or suspended from the ceiling.
Supply Ability
Supply Ability: 400 Square Meter/Square Meters per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Technical Specification:
| Product Series | AN-PX-10.42 |
| Pixel Pitch | W:10.42-V:10.42mm |
| LED Configuration | SMD1921 |
| Pixel Density | 4096 |
| Cabine Size(W*H*D) | 1000*500*70mm |
| Cabinet Material | Aluminum |
| Cabinet Color | Silver & Black |
| Transparency | 60% |
| Brightness | 3500cd-4500cd |
| Brightness adjustment | 0-256 level(by software) |
| View angle | 140°-140° |
| Refresh Rate | ≥1920Hz |
| Max. Power Consumption | 800W |
| Ave. Power Consumption | 260W |
| Weight | 16kg |
| Operating Temperature | -25~85℃ |
| Operating Humidity | 10%-90% |
| Input Voltage | AC 110~240V / 50-60Hz |
| Life span | 100000 hours |
| Install method | Fix & Rental |
| Cabinet connect method | Wireless |
| Custom design | We can provide custom design service.All of the cabinet can be
changed accordingt to building structure. |
LED display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.
4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
