Super Slim HD 500x1000 Transparent Indoor Led Display Video wall
Screen
1.Good visualization
Glassbased design allows the light to pass through the glass
without any influence to the building structure around.Transparency
of the glass screen can up to 75%.
2.Ultra-thin, and ultra-light.
The thick can up to 1cm, and the weight can up to 14kg/m2
3.High brightness, and high definition.
The brightness can up to 5000 cd/m2.
4.Easy and convenient maintenance.
It can be maintained from inside, safer and more convenient.
5.Saving lighting costs of the whole building.
Besides good advertising effect, LED glass display also helps
lighting the glass wall, thus makes the glass wall more attractive
and saving a lot lighting cost.
6.Wide use range.
Wherever the glass wall is, glass LED display can be installed.
Such as bank, supermarket, theater, business street, hotel, public
civic buildings, and landmark buildings, etc.
Supply Ability
Supply Ability: 400 Square Meter/Square Meters per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Technical Specification:
| Item | AN-PX-3.91-7.81 | AN-PX-7.81-7.81 | AN-PX-10.42-10.42 |
| Pixel pitch | 3.91-7.81mm | 7.81-7.81mm | 10.42 mm |
| Module size(W*H) | 500*125mm |
| Cabinet size(W*H) | 500*1000mm / 1000*1000mm /2000*1000mm |
| Cabinet resolution(W*H) | 128*128 Dots | 128*64 Dots | 96*48 Dots |
| Cabinet material | Extruded aluminum | Extruded aluminum | Extruded aluminum |
| Cabinet weight | 5Kg | 5Kg | 5 Kg |
| Grey scale | 14Bit | 14Bit | 14Bit |
| Refresh rate | 1920 Hz | 1920 Hz | 1920 Hz |
| White balance brightness | 5500 Nit | 6000 Nit | 6000 Nit |
| Horizontal viewing angle | 140 degree | 140 degree | 140 degree |
| Vertical viewing angle | 140 degree | 140 degree | 140 degree |
| Power consumption(Max) | 1200 W/M2 | 1200 W/M2 | 1000 W/M2 |
| Protection level | IP4X | IP4X | IP4X |
| Application scene | Indoor installed,outdoor watching |
| Work environment | -10…55ºC RH 10%…90% |
| Pixel configuration | SMD3528UV | SMD3528UV | SMD3528UV |
| Minimum viewing distance | 5.0 M | 7.0 M | 9.0 M |
| Best viewing distance | 5.0-45 M | 7.0-55 M | 9.0-75 M |
| Pixel density | 30000 Dots/sqm | 16667 Dots/sqm | 10000 Dots/sqm |
| Max brightness | 5500 Nit | 5500 Nit | 5500 Nit |
| Voltage | AC95-240V | AC95-240V | AC95-240V |
| Transparent rate | 72% | 75% | 80% |
| Drive mode | 1/4S constant current | 1/2S constant current | 1/2S constant current |
| Circuit scheme | high refresh rate, no ghost. | high refresh rate, no ghost. | high refresh rate, no ghost. |
| MTBF | ≥10,000h | ≥10,000h | ≥10,000h |
| Lifespan | ≥80,000h | ≥80,000h | ≥80,000h |
| Pixel failure ratio | <3/100000 | <3/100000 | <3/100000 |

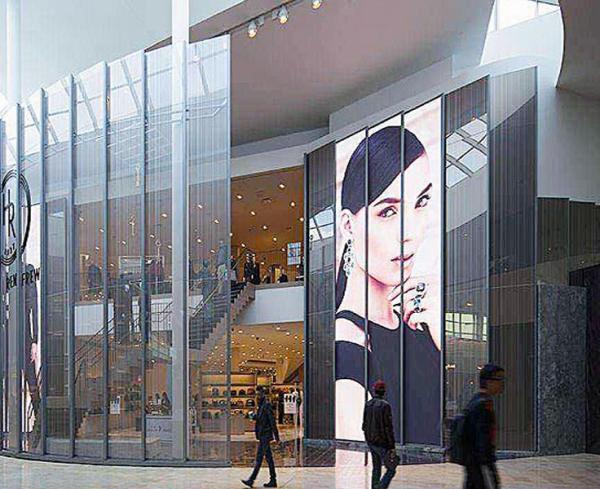

LED display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.
4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
