HD Video Advertising LED Display P5.2 P10.42 Indoor Outdoor Glass
Transparent LED Screen
1. Slim, Light Weight and Quiet
80mm thickness
8kg per cabinet ( 1000x500mm )
Available to attach onto glass wall directly
2. High Transparency and Concise
60-80% transparency rate among different pitches
Variable brightness options for day and night environment
Hidden cable design looks clean and concise
3. Special Emitting Angle
Lighting from tube side emitting
Brightness and color are penetrated via the glass effect
Embedded-In SMD technology, avoid to be knocked off during
transportation and installation
4. Easy Maintenance, Outdoor Available
Repairing single SMD without taking of single module or entire
panel.
IP65 high waterproof IP rating is available for outdoor use.
5. Stable and Reliable
Stability is very import for this product, under the patent of
inlaying SMD into PCB, ensure the stability better than other
similar products in the market.
6. Wide Applications
Any building with glass wall, for example, bank, shopping mall,
theatres, chain stores, hotels, and landmarks etc.
Supply Ability
Supply Ability: 400 Square Meter/Square Meters per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Technical Specification:
| Model | P-5.2 | P-10.42 |
| Pixel Pitch | 5.21mm;10.42mm | 10.42mm |
| Scan Method | 1/2 scan | 1/2 scan |
| Driving IC | MY9866 QFN | MY9866 QFN |
| Module Dimension | 500x250mm | 500x250mm |
| Module Resolution | 96x24 | 48x24 |
| Pixel Density/Module | 2304 Dots | 1152Dots |
| Panel Dimension | 1000x500mm | 1000x500mm |
| Panel Resolution | 192×48 | 96×48 |
| Module Quantity/Panel | 4pcs | 4pcs |
| Pixel Density | 18,432 Dots/sqm | 9,216 Dots/sqm |
| Material | Die-casting Aluminum | Die-casting Aluminum |
| Single Panel Weight | 8.5KG | 8KG |
| Brightness | 5500cd/sqm |
| Viewing Angle | 140°(H), 120°(V) |
| Best Viewing Distance | ≥6m |
| Gray Scale | 16 bit |
| Colours | 281 trillion |
| Refresh Rate | ≥3840Hz |
| refresh frame frequency | 60Hz |
| IP Rating | IP65 |
| Input Voltage | AC220V/50Hz ; AC110V/60Hz |
Support Pole | Hanging/ Stocking |
| Brightness | ≥4500 nits |
| Viewing Angle | Horizontal 140°, Vertical 140° |
| Nearest Viewing Distance | 6 meter |
| Power Consumption (Max) | 900 w/m2 |
| Power Consumption (Average) | 300 w/m2 |
| Display Function | Text,Graphics,Video |
| Refresh Rate | ≥2000Hz |
Store Humidity | 10%~90% |
Work Humidity | 35%~85% |
Store Temperature | 0~40℃ |
Work Temperature | -20~+65℃ |
LED display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.

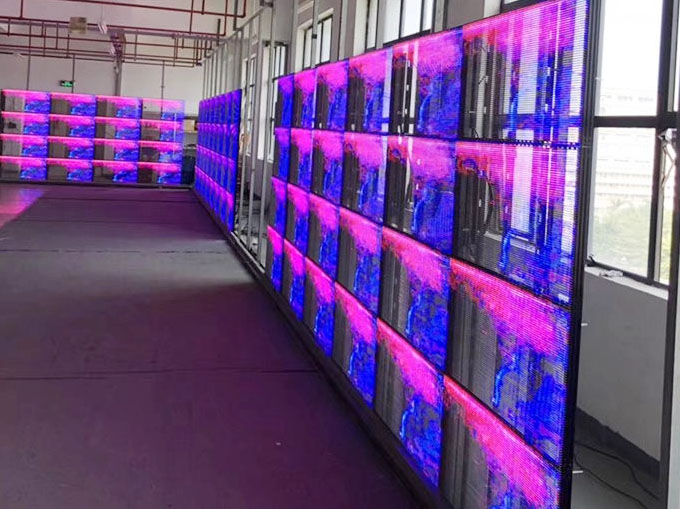

4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
