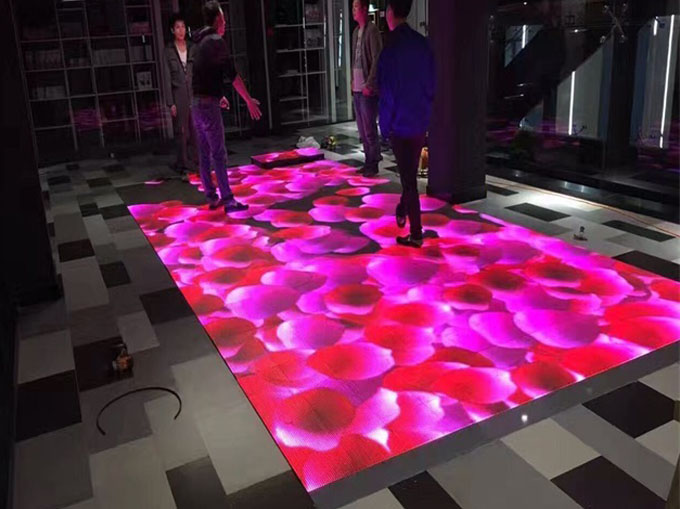

Led Screen Dance Floor Interactive Floor Display Full Color wall
For Stage P4.81 P6.25
1, With good lightening accordance and no mosaic
2,Can play different formats of image files, flash, WAV/MIDI, video
signal from
TV, video signal from video and other equipment
3, Different video frequency can be changed freely at the same
time, and the image
can be enlarged and reduced
4,High brightness, and can be adjustable, meets the need of
changing requirement
of customer in environment
5,Uses real pixels rather than virtual pixels, better viewing
effect
6. Wide application field&short ROI time:Commercial advertising
LED display, Stadium perimeter LED display,Mobile trailer LED panel
for mobile media,shopping mall LED panel for logo
showing,bank&stock exchange LED panel for rates
showing,train&bus station,air port,telecommunication LED panel
system for information showing and instruction.
7. High Contrast:7000:1,which is a very high level to ensure a
vivid image of our LED display screen system.
8. First-class LED chip: Supplied by Ni-chia of Japan to ensure the
long lifetime and high brightness of our LED screen system.
9.Clear vivid image quality even in direct, full-on sunlight to
ensure you attracts more audience to get short ROI of your LED
screen's investment.
10.Long-term Brightness:7500-nit brightness( for outdoor full
color) (1200-2700 nits brightness for indoor full color)capacity
throughout product lifetime of the LED display.
Technical Specification:
| Type Name | Dance floor led display 500 x1000 serial |
| Pixel Pitch | 3.9mm | 4.8mm | 6.25mm |
| Pixel density(dot/m2) | 65400 | 43264 | 25600 |
| Brightness (nits) | ≥5500 | ≥5500 | ≥6000 |
| Drive Method | 1/16 | 1/13 | 1/10 |
| Refresh rate (HZ) | ≥1200 |
| Cabinet pixel | 128x256 | 104x208 | 80x160 |
| Cabinet size (mm) | 500x1000x80 |
| Loading weight | 2 000KG |
| Cabinet material | Steel cabinet |
| Cabinet weight | 18kg/cabinet |
| Screen work Voltage (V) | 110~240V/AC |
| Screen power consumption | Max 750 / Average250 | Max 800 / Average350 | Max800 / Average 320 |
| (W/) |
| Screen View angle | 140°/140° |
| IP Grade | IP65 |
| Operationg Temperature/Humidity | -20~50ºC |
| 10~90% RH |
| Storage Temperature/Humidity | -40~60ºC |
| 10~90% RH |
| Life Time | >50000H |
| Standard | CE CCC | CE CCC | CE CCC |
| Certification |
Supply Ability
Supply Ability: 1100+pieces/pcs per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Stage rental LED screen display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.
4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
