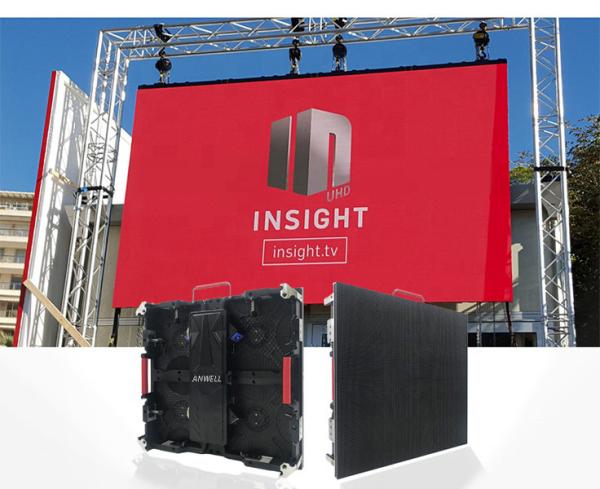

Factory Direct HD Full Color P5.95 P4.81 P3.91 Stage Led Screen
Display
1. Lightweight. Convenient in transporting and installing & saving
labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person
without tool.
4. Humanized operating interface with breakdown indicator lights,
easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving
the debugging technology for nice image
6. Adjustable curve . With angle regulator , the arc can be
adjusted to 10 degree concave to 10 degree convex
7. Front service modules. The maintenance can be easily done from
front by taking off the modules
8. The same panel is compatible with P2.97, P3.91,P5.95 and P6.25
indoor and outdoor LED display .

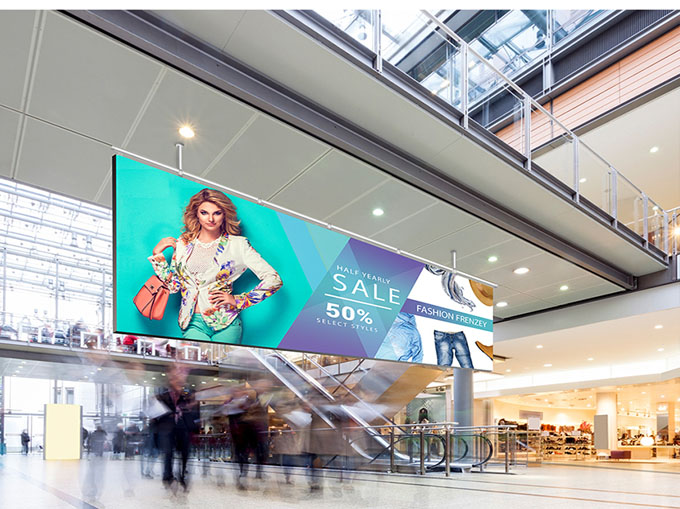

9. Application: stage rental, shopping mall, DJ touring, theme
resort, car show, fashion store, house of worship, window display,
reception hall, opera house, wedding hall, events and conference
Supply Ability
Supply Ability:1400 Square Meter/Square Meters per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Technical Specification:
| Rental led display panels |
| Model No. | P2.6 | P2.84 | P2.97 | P3.91 | P4.81 | P5.95 | P6.25 |
| Pixel Pitch | 2.604mm | 2.84mm | 2.976mm | 3.91mm | 4.81mm | 5.95mm | 6.25mm |
| Pixel Density | 147456 | 123904 | 112896 | 65536 | 43264 | 28224 | 25600 |
| (dots/sq.m) |
| LED component | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD3528 | SMD3528 |
| Module Size | 250 X 250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| Module Resolution | 96 x 96 | 88 x 88 | 84 x 84 | 64 x 64 | 52 x 52 | 42 x 42 | 40 x 40 |
| (dots/sq.m) |
| Panel Size | 500x500mm | 500x500mm | 500x500mm | 500x500mm | 500x500mm | 500x500mm | 500x500mm |
| 500x1000mm | 500x1000mm | 500x1000mm | 500x1000mm | 500x1000mm | 500x1000mm | 500x1000mm |
| Panel Weight | 8kgs | 8kgs | 8kgs | 8kgs | 8kgs | 8kgs | 8kgs |
| 14kgs | 14kgs | 14kgs | 14kgs | 14kgs | 14kgs | 14kgs |
| Brightness | ≤1200nits | ≤1200nits | ≤1200nits | ≤1500nits | ≤1500nits | ≤1500nits | ≤1500nits |
| Best viewing distance | ≥2.6m | ≥2.8m | ≥2.9m | ≥3.9m | ≥4.8m | ≥6.0m | ≥6.2m |
| Maximum power consumption | ≤1000W/sq.m | ≤1000W/sq.m | ≤800W/sq.m | ≤800W/sq.m | ≤800W/sq.m | ≤800W/sq.m | ≤800W/sq.m |
| Driving method | 1/32 | 1/22 | 1/28 | 1/16 | 1/13 | 1/7 | 1/10 |
| Control method | Synchronous control system ( connect with computer or video
processor) |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame Frequency | 50/60Hz |
| Refresh Frequency | >2000Hz |
| IP grade | IP31 |
| Effective Communication | Unshielded twisted pair net line transmission distance:100M, max
transmission distance:130M; Multi-mode optic fiber: 500M; |
| Distance(without relay) | Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
LED display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.
4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
