Indoor P2.5 SMD Flexible LED Module For Curved LED Screen Video
Wall
1, Seamless panel connection: Panels are stitched together via
magnetic connection. This magnetic buckle design also ensures fast
installation and replacement.
2, Space-efficient: Since these soft and flexible LED displays are
not enclosed inside a cabinet, they only take up 5mm space in
thickness. So, you can install freely without worrying about space
limitations.
3, Cost savings: Thanks to their light-weight design, up to 20 sq
mts of soft LEDs can be packed inside one flight case. So, you get
to save on both shipping and labor costs.
4, Easy servicing: With top and front access for service,
maintenance becomes astonishingly quick and easy.
5, Highly customizable: You decide the shape, size, color, and
pixel pitch, and we will take care of the rest. With these soft and
flexible LEDs, you don't have to shy away from irregular shapes
like circles, columns, ellipses, triangles, spheres, etc.
Supply Ability
Supply Ability: 400 Square Meter/Square Meters per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Technical Specification:
| Mode | AN-PX-S2.5 | AN-PX-S3.0 | AN-PX-S4.0 |
| Physical Pitch | 2.5mm | 3mm | 4mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 160,000 pixels/m² | 111,111 pixels/m² | 62,500 pixels/m² |
| Module Dimensions(W*H)(mm) | 240*120 | 240*120 | 240*120 |
| Panel Dimensions(mm) | Customized | Customized | Customized |
| Physical Resolution of Module(W*H) | 96*48 | 80*40 | 60*30 |
| Weight | 8.2kg/m² | 8.2kg/m² | 8.2kg/m² |
| Processing | 14-16bit | 14-16bit | 14-16bit |
| Colour Number | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4000:01:00 | 4000:01:00 | 4000:01:00 |
| Average Power Consumption | 9W/m² | 10W/m² | 10W/m² |
| Max. Power Consumption | 12W/m² | 13W/m² | 13W/m² |
| Operating Temp/Humidity | -20ºC-60ºC/10%-60% | -20ºC-60ºC/10%-60% | -20ºC-60ºC/10%-60% |
| Storage Temp/Humidity | -40ºC-80ºC/10%-90% | -40ºC-80ºC/10%-90% | -40ºC-80ºC/10%-90% |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz |
| Brightness | >1000 nits | >1000 nits | >1500 nits |
| Driving Method | 1/40 | 1/40 | 1/40 |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| IP Rating | IP40 | IP40 | IP40 |
| Servicing | Front | Front | Front |
| Certification | CCC,CE,ETL,FCC | CCC,CE,ETL,FCC | CCC,CE,ETL,FCC |

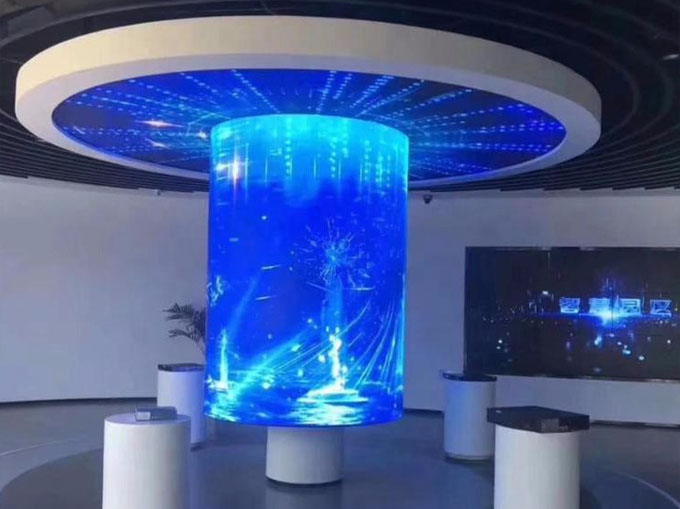

LED display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.
4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
