High Quality Flexible Indoor LED Screen P4 LED Display Panel Soft
LED Curtain Display
1. P4 P3 P2.5 P2 P1.875 uni-size 240mm*120mm;

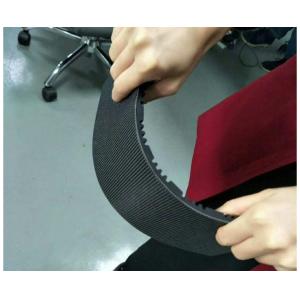

2. Good flexibility, can be curved freely;
3. Make a customized personalized design;
4. Adapt to more complex environments and better visual angles;
5. Special PCB technology, cell phone PCB material, bending up to
120°;
6. Soft frame is insulation, big magnetic force, good flatness;
7. QC Passed 24 hours of high and low temperature test, high
temperature 100℃ low temperature 45℃ non degumming no warping
Angle.
FLEXIBLE LED DISPLAY APPLICATION:
>> Lobby information display of office, bank, securities
company etc.
>> Display information of shopping mall, shops etc.
Technical Specification:
| Item No | AN-PX2.0 | AN-PX2.5 | AN-PX3 | AN-PX4 |
| Physical Pitch | 2 mm | 2.5 mm | 3 mm | 4 mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density | 250,000 pixels/m² | 160,000 pixels/m² | 111,111 pixels/m² | 62,500 pixels/m² |
| Module Dimensions (W× H)(mm) | 240 × 120 | 240 × 120 | 240 × 120 | 240 × 120 |
| Panel Dimensions (mm) | customized | customized | customized | customized |
| Physical Resolution of Module (W× H) | 120 x 60 | 96 × 48 | 80 × 40 | 60 × 30 |
| Weight | 8.2 kg/m² |
| Gray Scale | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000 : 1 |
| Average Power Consumption | 9 w |
| Max Power Consumption | 12 w |
| Brightness | >1,000nits |
| Refresh Rate | 1,920 Hz |
| Driving Method | 1/40 |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front |
| IP Rating (Front/Rear) | IP 54 |
| Installation | Hang |
| Certification | CE, FCC, RoHS |
| Operating Temp/Humidity | -20ºC- 60ºC / 10% - 90% |
| Storage Temp/Humidity | -40ºC-80ºC / 10% - 90% |
Supply Ability
Supply Ability: 1100+pieces/pcs per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Flexible LED screen display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.
4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
