Curved Flexible Customized LED Display Billboard P4 Indoor Stage
Background LED Digital Screen
We focus on all kinds of led display screen manufacturing included
indoor outdoor led display, rental led display, flexible led
display, transparent led display, dance floor led series, HD
resolution led display, perimeter led display,stadium sport led
display screen, led sign, led display board and led billboard.
• rental LED display screen
• indoor & outdoor advertising led display
• front service / front access led sign
• led poster sign
• small pixel pitch LED display
• 4K video wall screen
Product features
•The most stable and soft led flexible panel. 4 modules to make one
column (min diameter<0.3m)
•Even distributed magnet are designed to make sure the module can
be smoothly assembled on structure.
It also balances module strength when it bents.
•Module with location pin, seamless & easy assembly.
•Full flexible PCB and silicon material on PCB real side.
•Full front service
Space-efficient: Since these soft and flexible LED displays are not
enclosed inside a cabinet, they only take up 5mm space in
thickness. So, you can install freely without worrying about space
limitations.
Cost savings: Thanks to their light-weight design, up to 20 sq mts
of soft LEDs can be packed inside one flight case.
So, you get to save on both shipping and labor costs.
Easy servicing: With top and front access for service, maintenance
becomes astonishingly quick and easy.
Highly customizable: You decide the shape, size, color, and pixel
pitch, and we will take care of the rest.With these soft and
flexible LEDs, you don't have to shy away from irregular shapes
like circles, columns, ellipses, triangles, spheres, etc
Product Description:
1.Price Advantage: we have the best competitive price at the
market, also have the same even better quality.Wide viewing angle
and the horizontal angle can reach 110 . The images display effect
will not Change in the range.
2.Quality advantage: From material to finished product, from design
to produce, we control all steps. Good heat dissipation capability
because of the unique design of vent fan.High and adjustable LED
brightness can meet the demands of the changing requirement of
customer in different environments.No mosaic display due to
excellent flatness and nice uniformity of light-emitting.
3.Service advantage: Better service at same situation, better
cooperation at same service.
4.Certificate:We ensure that our products are the CE certified,
ROHS compliant, FCC ,ULidentified and passed the system of ISO
9001.
Technical Specification:
| LED Module |
| Dimensions (w x h) | 240mmx120mm | Resolution (w x h) | 60x30 |
| Pixel pitch | 4mm | Pixel Density | 62500/m2 |
| LED Chip | Epistar | Pixel Configuration | SMD2121 |
| Standard Panel |
| Display size (w x h x d)(mm) | 512x 512x80 or customized | Module quantities | 8 |
| Physical Resolution (w x h)(dots) | 128 x 128 | Physical Pixels (dots) | 16384/cabinet |
| Weight/Panel (kgs) | 7.5 | Material | Aluminum die casting |
| Average Power/sqm (watts) | 240 | Max Power/sqm(watts) | 800 |
| Parameter | Value |
| Brightness | 900 cd/m2 |
| Viewing Angle | Horizontal 160 deg. Vertical 140 deg. |
| Minimum Viewing Distance | 2.5meters |
| Brightness Control | 256 levels |
| Gray Scale | 16 bit |
| Refresh Rate | 3840Hz |
| Driving Mode | 1/32 Scan |
| Input Power Frequency | 50 or 60 Hertz |
| Input Voltage | 96-242 Volt |
| Blind Spot Rate | <1/10,000 |
| Lifetime at 50% Brightness | 100,000 hours |
| IP Rating | IP30 |
| Operating Temperature | -40 ~ +60 OC |
| Operating Humidity | 10% ~ 90% |
| Control distance | CAT6 cable:<100 m; Single mode fiber:<10 km |
| Signal input format | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
Supply Ability
Supply Ability: 1100+SQM per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |

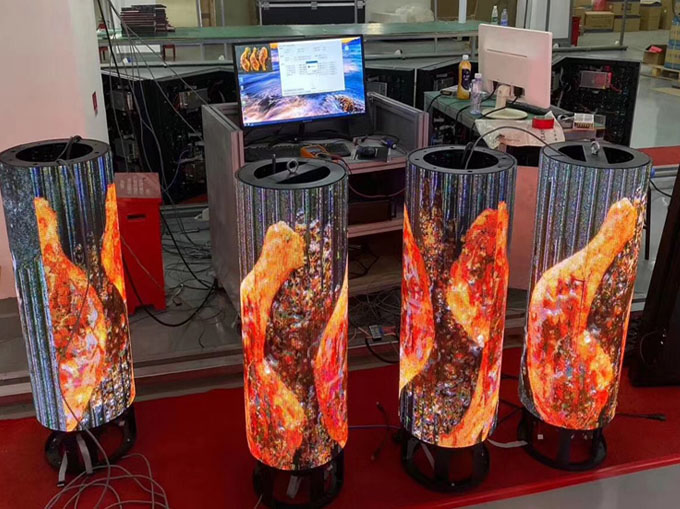

Real products and projects overview
OUR SERVICE:
PRE-PRODUCING:
1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
IN PRODUCING:
1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients
AFTER SERVICE:
1. 2 years free maintenance
2. 7 days a week, 24 hours a day for 5 years on-line service for
any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service
