SMD P10 Outdoor LED Screen with Die-Cast Cabinet for Fixed
Installation
Accurate position of the locating dowel makes the surface between
cabinets flat;
Made through CNC,Assembly accuracy 0.1mm,Seamless Assembly;
No granular spots and mosiac on the screen, High-degree of color
coordinates;
Clearer and vivider piture,Seamless,No chromatic;
large viewing angle,Soft image,High resolution;
Multi-layer circuit PCB,Lower consumption,Fast
Heat-emmiting,Longlife,High stability.
Application:
Widely used in Advertising media, Concert, TV SHOW, Super mall,
Entertainment, School, Government, Trading conversation, Commodity
fair, Exhibition, Cinema, News conferences, Meeting room, Airport,
Hotel, Station Hall and other Public Places
Technical Specification:
| Items | LED Display Parameter |
| Product Model | P10 Full Color Led Display Module |
| Module size | 320mm*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10000dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 32dots(W)*16dots |
| Module maximum power consumption | 20W |
| Module Thickness | 25CM |
| Module Weight | 0.45kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/2 scan |
| Interface | HUB75 |
| Brightness | 6500cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 960mm*960mm |
| Module quantity | 18pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 10M~100M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20°C~+50°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
| Operating Voltage | AC220V±10% |
| Average power consumption | 350W/H |
| Maximum power consumption | ≤700W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
| Driving device | Constant Current Driving |
| Refresh rate | ≥320HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
Supply Ability
Supply Ability: 1100+pieces/pcs per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |

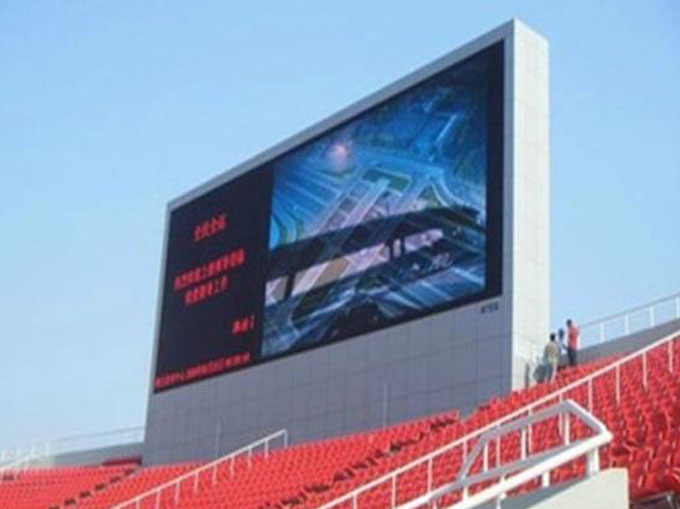

Outdoor LED screen display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.
4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
