Outdoor Full Color Arc Curved Flexible LED Video Screen P5.95 P6.25
P8.928
1. SMD led encapsulation confirm wide view angle and good
uniformity,eyes friendly
2. Good waterproof IP65, meet different even bad weather
3. High resolution, High definition,High brightness up to 6000nits
4. With super thin Aluminum cabinet of size 500x1000mm, light
weight,easy to install and maintain
5. Easy and quick to assemble without tools in short time, can be
curved and arc shapes with angle adjuster, better for different
design request
6. Low power consumption, low noise created, low transportation
costs, and low installation costs.
7. Widely used for stage, concert, show, banquet, wedding, rental
display,also can be used as led dance floor etc.
Application:
Widely used in outdoor advertising, toll gate, supermarket,
shopping mall, sport game etc.
Technical Specification:
| Model No. | P5.95 | P6.25 | P8.928 |
| Pixel pitch | 5.95mm | 6.25mm | 8.928mm |
| Led type(Black) | SMD3535 | SMD3535 | SMD3535 |
| Resolution(dots/sq.m) | 28224 | 25600 | 12546 |
| Brightness(Nits) | ≥5500 | ≥5500 | ≥5500 |
| Drive mode | 1/7 | 1/10 | 1/7 |
| Module size(mm) | 250×250 | 250×250 | 250×250 |
| Panel size (mm) | 500×1000 | 500×1000 | 500×1000 |
| Panel resolution(dots) | 84×168 | 80X160 | 56×112 |
| Cabinet weight(KGS) | 13 | 13 | 13 |
| Power consumption | 600/300 | 600/300 | 600/300 |
| Max./Avg. (W/m²) |
| View angle(H/V) | 140°/140° | 140°/140° | 140°/140° |
| Refresh rate(Hz) | ≥1200 | ≥1200 | ≥1920 |
| Grey scale | 16Bits | 16Bits | 16Bits |
| Best view distance | 3-18M | 3-21M | 7-50M |
| Protection level(Front/Back) | IP65 | IP65 | IP65 |
| Input Power (V) | 110~240 | 110~240 | 110~240 |
| Working Temperature | -20ºC~+50ºC | -20ºC~+50ºC | -20ºC~+50ºC |
| Working humidity | 10% ~90% | 10% ~90% | 10% ~90% |
| Control distance | Caste ≤100M, Fiber optical≤10000Mmm |
Supply Ability
Supply Ability: 1100+pieces/pcs per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |

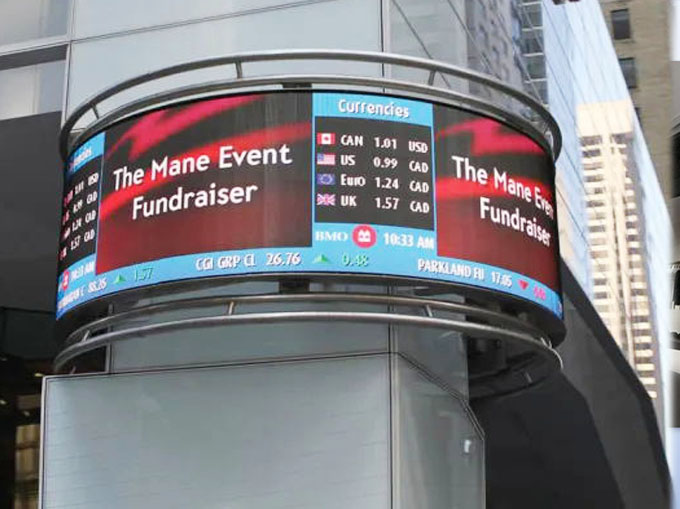

Outdoor LED screen display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.
4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
