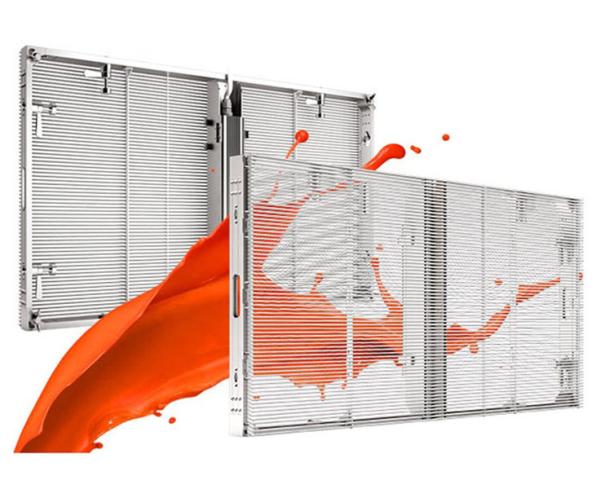

P3.91 P10.42 See Through LED Screen for Digital Advertising Store
Rental Transparent LED Screen
1. front &back service
multiple maintenance mode makes it more convenient on installation
and maintenance .
2. strong quantity
anti-uv,low (-40ºC)&high temperature(+120ºC) resistance
,typhoon resistance .
3. high refresh rate ,super slim &light weight 3840hz,16kg/sqm
,cabinet thickness 80MM .
4. exclusive design on outdoor waterproof
5. Special Emitting Angle
Lighting from tube side emitting
Brightness and color are penetrated via the glass effect
Embedded-In SMD technology, avoid to be knocked off during
transportation and installation
6. Easy Maintenance, Outdoor Available
Repairing single SMD without taking of single module or entire
panel.
IP65 high waterproof IP rating is available for outdoor use.
7. Stable and Reliable
Stability is very import for this product, under the patent of
inlaying SMD into PCB, ensure the stability better than other
similar products in the market.
8. Wide Applications
Any building with glass wall, for example, bank, shopping mall,
theatres, chain stores, hotels, and landmarks etc.
Supply Ability
Supply Ability: 400 Square Meter/Square Meters per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Technical Specification:
| Resolution/mm | 3.91/7.81/10.42 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 32768dots/square meter |
| Module size/mm | 1000x500 |
| View distance | 4-50m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | 250cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/square meter | <950W |
| Average power:/square meter | <350W |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
LED display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.
4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
