HD Full Color Indoor Led Display Screen Led Display P2 Led Module
Fixe HD LED Display
[Model]:P2.0-P4 indoor full color LED display
[Applications]:Indoor LED video wall,Concert, Theater,Advertising
Hall, Stage, Events
[Features]:Brightness adjustment,steady performance, high
definition,abundance of colors, rich perspective, colorful, long
life span and energy-saving etc
Products introduction:

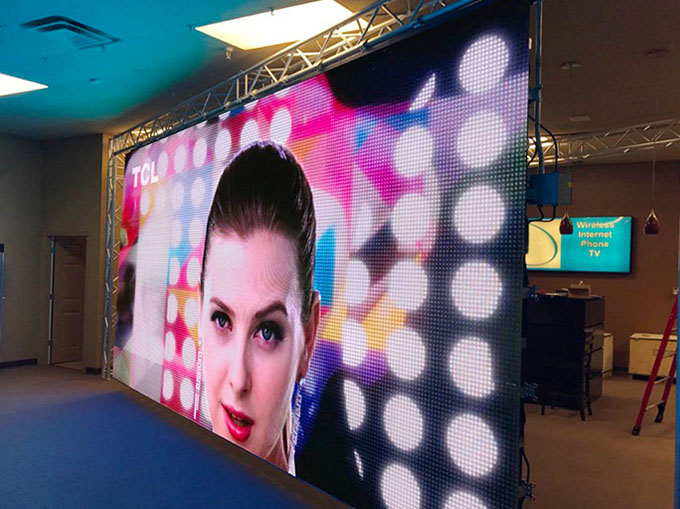

1,P2 indoor LED display is very popular in LED display advertising
field. This type LED display is
widely used indoor LED video wall, on the stage of concert, as the
background in the theater etc..
2,High brightness and support brightness automatically adjustment;
3,Long lifespan, can reach more than 100,000 hours, while the power
consumption is lower than one
tenth of lamp or neon;
4,Easy & simple installation interface and user friendly software
to ensure the user friendly interface
of the LED display system;
5,Rich indoor LED display engineering experience both in domestic
and international market.
Technical Specification:
Module | AN-PX2.0 | AN-PX2.5 | AN-PX-3 | AN-PX-4.81 | AN-PX-P4 |
Pixel Pitch(mm) | 2 | 2.5 | 3 | 4.81 | 4 |
Physical Density(dot/m²) | 250,000 | 160,000 | 111,111 | 43,264 | 62,500 |
LED Configuration | | RGB 3in1 |
LED Type | SMD 1515 | SMD 2020 | SMD 2121 | SMD2121 | SMD2121 |
Module Resolution(dot/w*h) | 128x64 | 64x64 | 64x64 | 52x52 | 64x32 |
Module Size(mm*mm) | 256x128 | 160x160 | 192x192 | 250x250 | 256x128 |
Cabinet Size(mm*mm) | 512x512 | 640x640 | 768x768 | 500x500 | 512x512 |
Cabinet Resolution(dot/w*h) | 256x256 | 256x256 | 256x256 | 104x104 | 128x128 |
Brightness(cd/m²) | ≥1100 | ≥1100 | ≥1200 | ≥1000 | ≥1500 |
Grey Scale | | 16 bit |
Driver Mode | 1/32 | 1/32 | 1/32 | 1月13日 | 1月16日 |
Average Power Consumption(w/m²) | 280~380 | 280~380 | 300~400 | 240~340 | 230~330 |
Max Power Consumption(w/m²) | ≤880 | ≤880 | ≤900 | ≤800 | ≤770 |
Input Voltage(V) | | AC 220V 50~60Hz/AC110V 60Hz |
Viewing Angle(Deg) | | Horizontal ≥120 Vertical ≥120 |
Protection | | IP43 |
Supply Ability
Supply Ability: 1100+pieces/pcs per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Ultra small pixel pitch display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.
4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
