4K Indoor LED Screen P1.5625 Fine Pixel LED Screen Small pixel LED
Screen HD Indoor LED Screen
Product Features
1: Slim and light, front maintenance. labor cost-saving solution
2: High density supports 4K resolution pixel to pixel display, high
contrast 5000:1, high brightness to up 1100CD and 3840Hz refresh
frequency ratio
3: Completely seamless configuration, splicing seam less 0.01mm.
Supports direct view and wide viewing angle up to 178 degree
(left/right)
4: With up to 281 trillion display color, 4096 levels grey scale
and over 100,000 working hours. More user experience will be
guaranteed.
5: Suitable for indoor advertising, TV studio, media production,
broadcasting, shopping mall, exhibition, security system, AV
integrated system, ect
Supply Ability
Supply Ability:1400 Square Meter/Square Meters per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Technical Specification:
| Model No.: | AN-PX1.5625 |
| Pixel Configuration | SMD0808/1010 |
| Pixel Pitch (mm) | 1.5625 |
| Pixel Density (dots/m²) | 409600 |
| Module Resolution (W×H) | 128×108 |
| Module Size (mm) | 200 (W)×168.75 (H) |
| Modules of Cabinet (W×H) | 2×2 |
| Cabinet Resolution (W×H) | 384×216 |

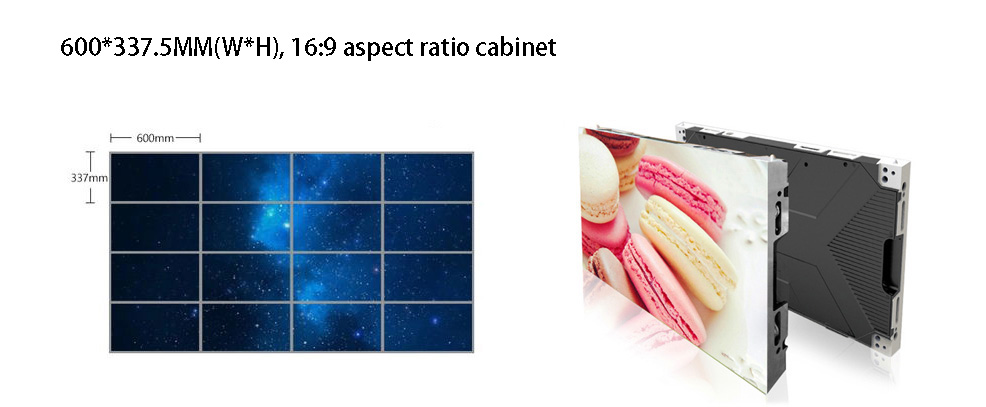

| Cabinet Size (mm) | 600 (W)×337.5 (H)×80 (D) |
| Cabinet Weight (kg) | 7.8 |
| Cabinet Level Up Degree (mm) | ≤0.2 |
| Maintenance Mode | Front |
| Cabinet Material | Die-casting aluminum |
| Single-point Brightness Correction | yes |
| Single - point Color Correction | yes |
| White Balance Brightness (nits) | ≥800 (6500K) |
| Color Temperature (K) | 3200—9300 (adjustable) |
| Viewing Angle (Horizontal / Vertical) | 160/160 |
| Light - emitting Deviation | <3% |
| Brightness / Chromaticity Uniformity | ≥97% |
| Contrast | 208.3340278 |
| Peak Power Consumption (W / m²) | 800 |
| Average Power Consumption (W / m²) | 250 |
| Power Supply Requirements | AC90~264V;47-63Hz |
| Frame Rate (Hz) | 50/60 |
| Drive Mode | Constant drive,1/27 |
| Grayscale Level | 65536 |
| Refresh Rate (Hz) | ≥3840 |
| Color Processing Depth | 16bit |
| Video Playback Capabilities | 2KHD,4KHD |
| Operating Temperature / Humidity (℃/RH) | -20 – 60 / 10%-85%RH |
| Storage Temperature / Humidity (℃/RH) | -20 – 60 / 10%-85%RH |
| Applicable Standards | CCC,TUV-CE,ETL |
Product Details
Small pixel LED display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.
4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
