Small Pixel P1.9 P2 LED Display Screen Fine Pitch P1.2 P1.5 P1.6
P1.9 HD LED
Product Features
1. It has adjustable 4096 levels grey scale, could show you vivid
image quality under low brightness condition. coupled with 3840Hz
refresh frequency ratio, it has un-capped advertising efficiency
2. Perfect grey performance under 20% lower brightness, 110% color
saturation under full brightness condition.
3. 281 trillion display color, 4096 levels grey scale, 3840Hz
refresh frequency ratio and working life up to 100,000 hours.
4. Supports pixel to pixel display in 4K resolution. direct view
and best viewing distance 2.0-50M
5: Suitable for indoor advertising, TV studio, media production,
broadcasting, shopping mall, exhibition, security system, AV
integrated system, ect
Supply Ability
Supply Ability:1400 Square Meter/Square Meters per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Technical Specification:
Item: | AN-PX1.923 |
Model Number: | 200mm*150mm |
Cabinet Size: | 400mm*300mm |
Pixel Pitch: | 1.923mm |
Pixels Density: | 275845dots/m² |
Pixel Configuration: | 1R1G1B |
Package Mode: | SMD1515 |
Pixel Resolution: | 208dots(W)*156dots(H) |
Drive Type: | Constant drive (MBI5124/6153) |
Scan Mode: | 1/28scan |
Port Type: | HUB75 |
Brightness of White: | 2500cd/m² |
IP rate: | IP33 |
Input Voltage: | AC220V/110V,50HZ/60HZ (±10%) |
Output Voltage | 5V,60A |
Best Viewing Distance | ≥4m |
Refresh rate | 1920-3840HZ |
Working Temperature | -20~50℃/10~90%RH |
Life-span | 100,000 hours |
Warranty | 2 years |
Product Details

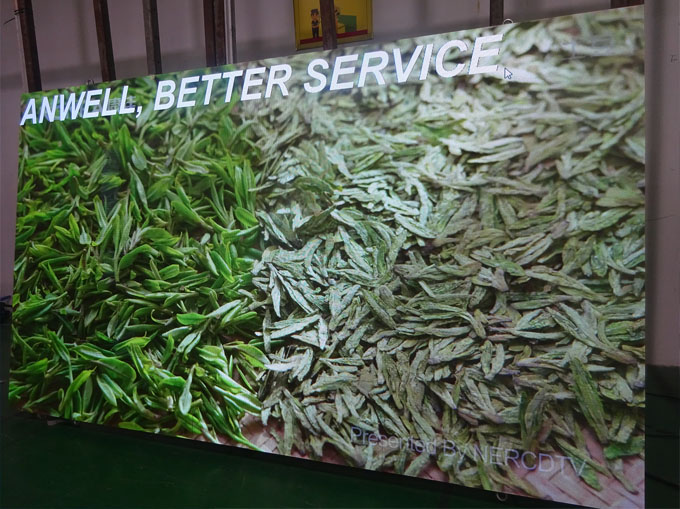

200*150MM LED display module, 400*300MM front maintenance cabinet
Small pixel LED display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.
4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
