Did Display 46inch 55inch Narrow Bezel Hd Screen Advertising
Digital Signage 3x3 Lcd Video Wall
Advantages of LCD Video Wall:
Reliable quality and low maintenance: Less thermal diffusivity
makes the components and parts more stable.
High Definition and clear image: High brightness and contrast make
colors brilliant and bright, as well as stable and clear image.
Wide viewing angle: DID LCD panel makes the viewing angle up to
180°.
Low power consumption and low heat radiation
Long service life lowers the cost of usage and maintenance
Innovative and advanced: 42” to 60” Ultra thin bezel LCD video
wall, the thinnest bezel up to 1.8mm
Ultathin and lightweighted: The ultra thin and lightweighted design
makes it easy to transport and install.
Economic al and practical: High performance and high quality make
it cost less.
The Features Of LCD Video Wall
Technical Specification:
| 1.7mm/3.5mm Bezel 46 inch 3x3 LCD Video Wall |
| Panel Size | 46" LCD Screen |
| Backlight Type | LED |
| Display Area | 1209.6(H)x680.4(V)mm |
| Aspect Ratio | 16:09 |
| Max Resolution | 3840x2160 |
| Color | 8Bit,16.7M |
| Brightness (nits) | 450cd/m2 |
| Contrast | 4000:01:00 |
| Visual Angle (H/V) | 180/180 °{H/V) |
| Response Time | 8 ms |
| Life Span | >60,000 hours |
| Bezel width (between screens) | 1.8mm |
| Product Dimension | 1211.5(L)×682.3(H)×139(D) |
| Product Weight | 25KG |
| Interfaces 4K input |
| Model No. | TYL-DP5515-H4 |
| Input | 1*HDMi |
| 1*DP |
| 1* DVI |
| 1*VGA (SVGA / XGA / WXGA) |
| 2*RS232(RJ45) |
| Output | 1* DP (Display port) |
| 2*RS232(RJ45) |
| Power |
| Power Supply | AC100V~240V 50/60Hz |
| Maximum Power Consumption | 200W |
| Stanby Power Consumption | <3W |
| Working Environment |
| Working Temperature | 0℃~60℃ |
| Working Humidity | 5%-95%RH |
Supply Ability
Supply Ability: 1100+pieces/pcs per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |

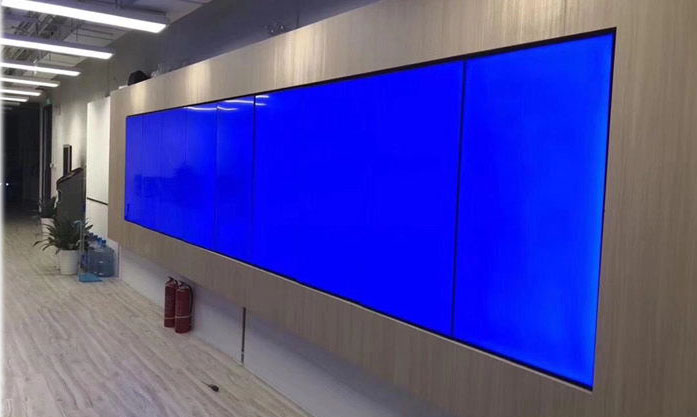

Video wall display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
SHENZHEN ANWELL INDUSTRY CO.,LIMITED guarantees the above mentioned
products as follows:
LCD panel and Parts: For a period of two (2) years from the date of
cargo delivery. Any defective parts includes LCD panel and
accessories will be, at this manufacturer's option, replaced or
repaired at no cost to the buyer. This products shall be notified
in writing, of any defects prior to two (2) years from the date of
cargo delivery, at which time the warranty expires.
Free LCD monitor parts and charged LCD panel within warranty
period.
The above warranty does not cover additional owner instruction,
set-up or adjustment. Likewise, this warranty does cover normal
wear and tear, cosmetic damage or damage caused by acts of nature,
accidents, negligence, misuse, abuse or lack of routine
maintenance, or modification to any part of the system, by anyone
other than SHENZHEN ANWELL INDUSTRY CO.,LIMITED.
