    All New Digital Led Poster LED Video Display P6 LED Billboard Display

    Ask Lasest Price
    Brand Name : ANWELL
    Model Number : AN-P6/8/10-Lamp post
    Certification : CE, RoHS, CCC
    Price : Negotiation
    Payment Terms : L/C, T/T, D/P, Western Union
    Delivery Time : 7 business days
    • Product Details
    • Company Profile

    All New Digital Led Poster LED Video Display P6 LED Billboard Display

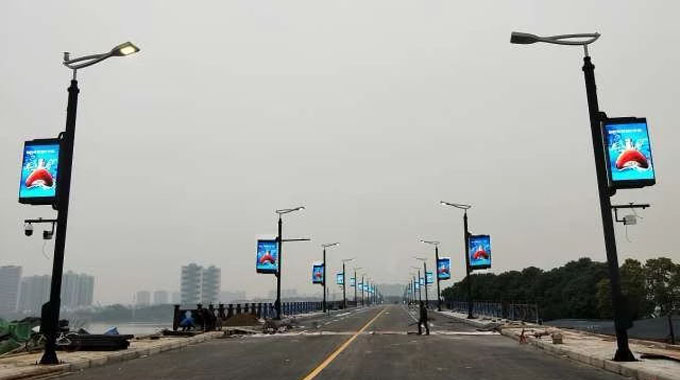

    P6 Outdoor Digital Signage Advertising Video Player Street Light Poster Screen LED Display On The Pole


    1. Multiple delivery
    Currently on the market light box advertising, double-sided advertising, can discharge up to two ads, and customer groups to change a few months, the number of ads placed limited, and Lamppost screen can be unlimited advertising emissions, and Lamppost screen can be placed at the same time dozens of ads, so that the utilization of light pole advertising on the corresponding increase.

    2. The video playback effect is good
    Relative light box advertising advertising, Lamppost screen can display dynamic video ads, from the delivery of the form is also more attractive. In contrast, there are stories of dynamic advertising story, no matter whether there is no one to see, as long as the broadcast, there will always be concerned about. And static advertising is a picture, one or two words often can not express the meaning of a good expression, so that the eye can attract less, especially in the hurry of the road, may also did not have time to pay attention to the existence of advertising.


    Warranty
    A: The panel default warranty is one year. If you need 3 years warranty, the cost will add 15%~20%.

    Payment receipt
    A: We accept TT or west union. And you can pay 30% deposit for production, and 70% balance before shipment.

    Delivery time
    A: It depends on the order qty. 3~4 days for sample order, 5~7 days if order qty is ≤50pcs, 7~10pcs if qty is ≤ 100pcs. And over ≥100pcs, the lead time needs to be negociated.


    Technical Specification:


    Technical parametersParameters values
    Pixel pitch6mm
    Panel sizeL192mm×H192mm
    Physical density27889dots/sqm
    Pixel configuration1R,1G,1B
    Driving methodConstant current
    Scan mode1/8 scan
    LED EncapsulationSMD3535
    Display resolution32dots×32dots=1024dots
    Module weight0.37KG
    Module portHUB75
    Module working voltageDC5V
    Module consumption30W
    Cabinet sizeW768mm*H1152mm/W768mm*H1344mm/can be customize
    Cabinet weight45kg
    Cabinet resolution96dots×96dots
    Viewing angle140°
    Option distance6m-50m
    Driving device16016
    Every square meter module27.13pcs
    Maximum power950W/sqm
    Frame Frequency≥60HZ/S
    Refresh frequency≥960HZ/S
    Equilibrium brightness≥5800CD/sqm
    Working environment temperature-10°C~+70°C
    Working environment humidity10%~70%
    Display working voltageAC46~54HZ,220V±15%/110V±15%
    Color temperature8500K-11500K
    Gray scale/color≥16.7M color
    Input signalRF RGB etc
    Control systemPCTV nonlinearity card, DVI display card,Linsn control system
    MTBF>5000
    Life100000
    Lamp failure frequency<0.0001
    IP ratingThe front IP65


    Supply Ability

    Supply Ability: 1100+pieces/pcs per Month.


    Packaging & Delivery


    Packaging Details
    LED module and accessories hard carton package
    Flight case and wooden case package for cabinets.
    Port
    SHENZHEN CHINA
    LOGO
    Acceptable
    Lead Time :
    Quantity(Square Meters)1 - 100>100
    Est. Time(days)25To be negotiated

    Real products and projects overview


    OUR SERVICE:

    PRE-PRODUCING:

    1. Get complete requirements of clients
    2. To do a thorough analysis
    3. Offer a most reasonable and scientific solution
    4. Customized design


    IN PRODUCING:

    1. Producing progress updating for clients
    2. Particular Installation CAD and Design Diagram for clients


    AFTER SERVICE:
    1. 2 years free maintenance
    2. 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
    3. Free training for customers in factory
    4. Local Partner Installation Service
