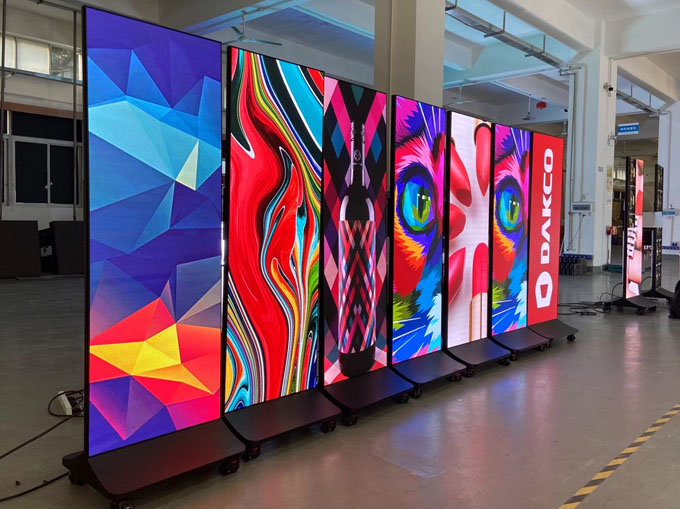

Full Color Indoor Poster Screen For Conference Room Shop
Advertising Hight Definition Led Poster Screen
1. No need to set up software;
2. Control system connect automatically when replace module;
3. Module and other accessories are very easy to be replaced.
4. Support wifi,USB etc.control mode
5. Can be installed in fold-out stand, standby,wall-mounted and
ceiling hang
6. 7 colors for choice: Ferrari Red, Red Gold, Classic Gold, Space
Blue, Electric Purple, Star Silver, Metal Green.
7. Floor standing, hanging mounting support.
8. It can widely used for supermarket, shopping store, hotels,
restaurants, bus station, airport, clothing stores, promotion
events, advertising, etc.
9. Remotely report system utilization and memory usage.
10. Content plays automatically upon set up of schedule.
11. Control, monitor and design screen layouts remotely by the
remote control office.
Supply Ability
Supply Ability: 400 Square Meter/Square Meters per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Technical Specification:
| Item | Specification |
| Model | AN-LEDPP25 | AN-LEDP30 |
| Pixel Pitch(mm) | 2.5 mm | 3 mm |
| Physical Density(dot/m2) | 160,000 | 111,111 |
| LED Configuration | RGB 3in1 |
| LED Type | SMD2020 | SMD2121 |
| Module Resolution(dot/w*h) | 128×64 | 64×64 |
| Module Size(mm*mm) | 320mm×160mm | 192mm×192mm |
| Display Dimension(mm*mm) | 1920mm×640mm | 1920mm×576mm |
| Overall Dimension(mm*mm) | 1966mm×686mmx35mm | 1966mm×622mm |
| Brightness(cd/m2) | ≥1200 | ≥1200 |
| Optimum Viewing Distance | ≥2.5m | ≥3m |
| Refresh Rate(Hz) | ≥1920 Hz |
| Driver Mode | 1/32 scan |
| Average Power Consumption(w/m2) | ≥280 | ≥300 |
| Max Power Consumption(w/m2) | ≥880 | ≥900 |
| Input Voltage(V) | AC 220V 50~60Hz / AC 110V 60Hz |
| Viewing Angle(deg) | Horizontal≥140°, Vertical≥140° |
| Protection | IP43 |
| Weight | 35 KG |
LED display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.
4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
