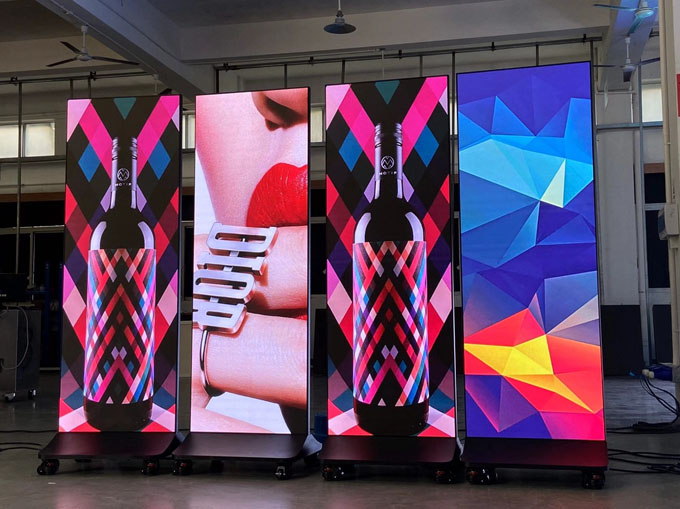

Led Posters Screen LED Sign Indoor LED Advertising Machine Matrix
Led Rgb Full Color Led Display
1, we have been working with high-end led lamp suppliers such as
Nationstar and Kinglight. They can supply best led lamp for us.
These lamps can drive a high brightness and vivid color.
2, Famous IC suppliers Macroblock (MBI) and Chipone (ICN) chose
high-precision chip, our screen image will display perfect color
consistency.
3, Controller system of leader Linsn, Colorlight, Novastar and
Huidu Tech are adopted, it is easier for us to achieve point by
point.
4, our mask was already designed to improve contrast ratio and
flatness of screen, at the same time, our mask has great function
about anti-interference and anti-aging.
5, What's more, our PCB is carefully selected with special craft,
which make our screen higher stability, stronger energy
conservation and low power consumption.
6. 7 colors for choice: Ferrari Red, Red Gold, Classic Gold, Space
Blue, Electric Purple, Star Silver, Metal Green.
7. Floor standing, hanging mounting support.
8. It can widely used for supermarket, shopping store, hotels,
restaurants, bus station, airport, clothing stores, promotion
events, advertising, etc.
9. Remotely report system utilization and memory usage.
10. Content plays automatically upon set up of schedule.
Supply Ability
Supply Ability: 400 Square Meter/Square Meters per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
Technical Specification:
| Pixel pitch | 2.5mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 2121 |
| Module size | 320*160mm |
| Module weight | 219g |
| Module resolution | 128*64mm |
| Module quantity per cabinet | 24pcs |
| Cabinet Parameter: | |
| Cabinet size | 640*1920mm |
| Cabinet material | Steel cabinet |
| Cabinet weight | 50kg+/-0.05kg |
| Cabinet resolution | 256*768dots |
| Ingress protection | Front/Rear IP40 |
Whole Screen Parameter | |
| Pixel density | 600000dots/m² |
| Brightness | ≥1000cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 2.5m |
| Max.power consumption | 900W/m² |
| Avg.power consumption | 400 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥60Hz |
| MTBF | ≥5000 hours |
| Lifespan | ≥50000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage |
| /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +40℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
| Control System Parameter: | |
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless,
internet etc. |
LED display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales
supports and complete project solutions assistance for every
customers.
1. All the products purchased from ANWELL company carries one year
free replacements and product life supports.
A: Two years warranty period, including one year free replacement
warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards
and accessories will be returned to ANWELL factory for maintenance
if necessary.
3. Complete project solutions services ranges from project design,
installation, operation to future maintenance. Fast response
capability to customers' request.
4. 24 hours aging test for every finished products before delivery,
no tolerance in faulty products. Top quality will be well
guaranteed.
5. Special offers available for preferred clients.
