SMD2121 Indoor P2.5 3840Hz LED Display Module Full Color

Product Categories

SHENZHEN ANWELL INDUSTRY CO.,LIMITED

Contact Now

SMD2121 Indoor P2.5 3840Hz LED Display Module Full Color

Ask Lasest Price
Brand Name :	ANWELL
Model Number :	AN-PX2.0/2.5/3.0/4.0/5.0
Certification :	CE, RoHS, CCC
Price :	Negotiation
Payment Terms :	L/C, T/T, D/P, Western Union
Delivery Time :	7 business days

Add to Cart

Product Details
Company Profile

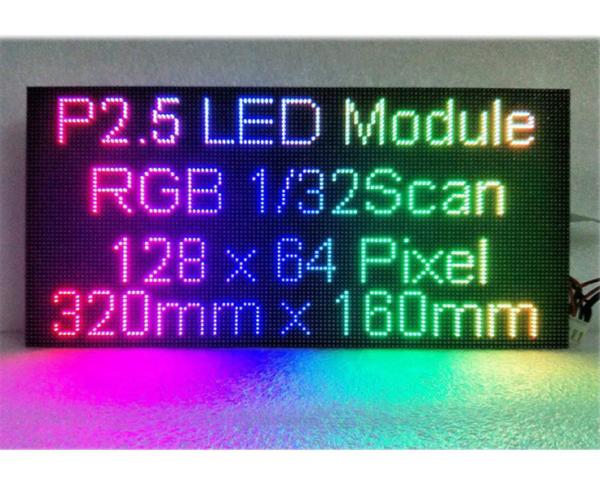

SMD2121 Indoor P2.5 3840Hz LED Display Module Full Color

Full Color 320x160mm Indoor P2.5 Led Module 3840Hz LED Display Module

Product Features

- You can use screws fix the modules , magnets also available
- Modules not waterproof ,keep it dry
- The data interface uses the conventional 16pin interface(usual modules are 16pin,you must need attention your control card suitable)
- Convenient power outlet, safety and quickly
- 1 pcs date cable send free
- 1 pcs power cable send free
- Modules aging more than 72 hours
- Our package:foam and carton

1, Indoor SMD led module: P1.667,P1.923,P2,P2.5, P3,P3.91, P4,P4.81,P5,P6,P7.62,P10
2, Outdoor SMD led module: P3,P3.91,P4, P4.81,P5,P5.95,P6,P6.67,P8,P10,P16
3, Outdoor DIP led module,with high brightness and waterproof: P8,P10,P12,P16,P20
4, Outdoor DIP 3in1: P6.67,P8,P10,P13.33
5, Indoor and outdoor single color and dual color led module

Technical Specification:

Item	Value
Pixel Pitch(mm)	2.5
Pixel Density(dots/sqm)	160000
LED Type	SMD2121
Viewing Angle(Deg.)	H:120 V:120
Brightness(nits)	800~1200
Refresh Rate(Hz)	360~3840
Module Size(mm)	160*160
Cabinet Size Recommended	480*480
(mm)	480*480
Cabinet Material	Die-casting aluminum
Cabinet Weight	≤ 35KG/SQM
Power Consumption	310/780
(Avg./Max. W/sqm)	310/780
IP Grade	IP43 / IP31
Operating Temp/Humidity	-20℃~45℃ 10~90%RH
(℃/%RH)	-20℃~45℃ 10~90%RH
Storage Temp/Humidity	-25℃~50℃ 10~90%RH
(℃/%RH)	-25℃~50℃ 10~90%RH
Lifetime(hours)	≥50000(Normal Temp)

Our services

1. Your inquiry about our products or the price will be replied within 4 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.

Indoor and outdoor LED rental display proejcts

Warranty Terms

ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.

1. All the products purchased from ANWELL company carries one year free replacements and product life supports.

A: Two years warranty period, including one year free replacement warranty period..

B: Product life supports and free project design.

2. Faulty products includes LED module, power supply, system cards and accessories will be returned to ANWELL factory for maintenance if necessary.

3. Complete project solutions services ranges from project design, installation, operation to future maintenance. Fast response capability to customers' request.

4. 24 hours aging test for every finished products before delivery, no tolerance in faulty products. Top quality will be well guaranteed.

5. Special offers available for preferred clients.
